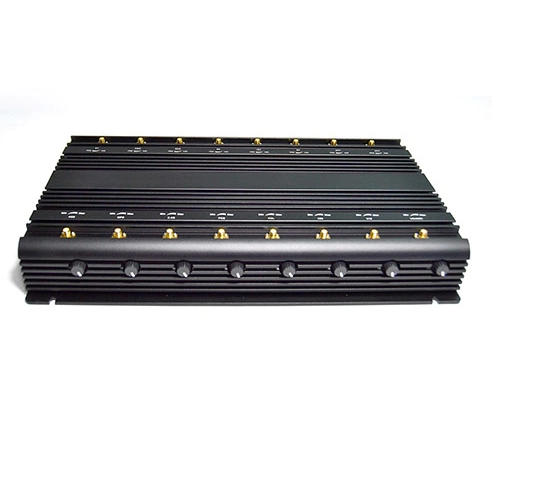

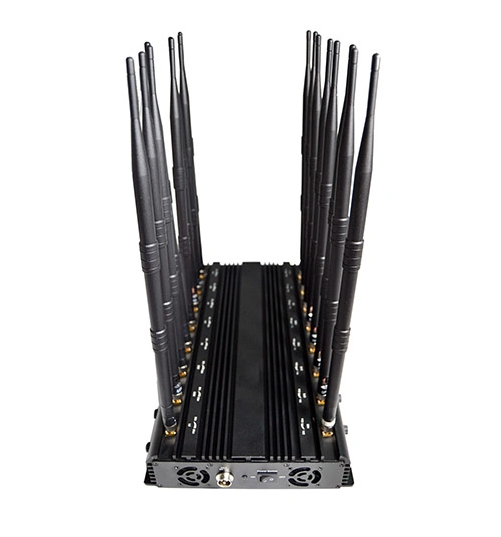

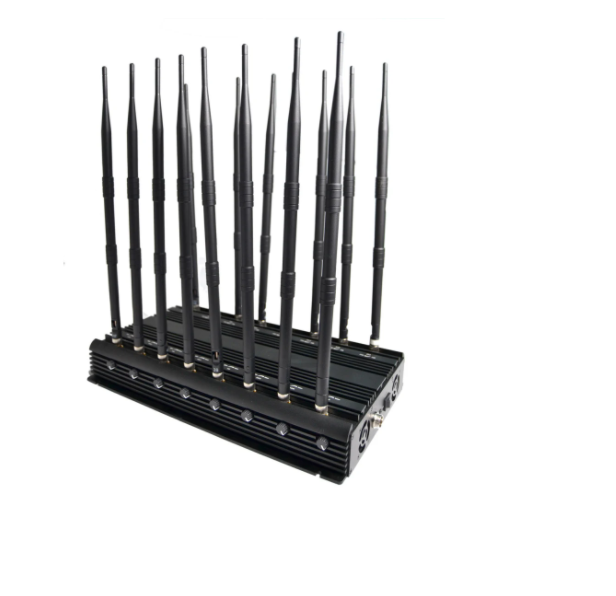

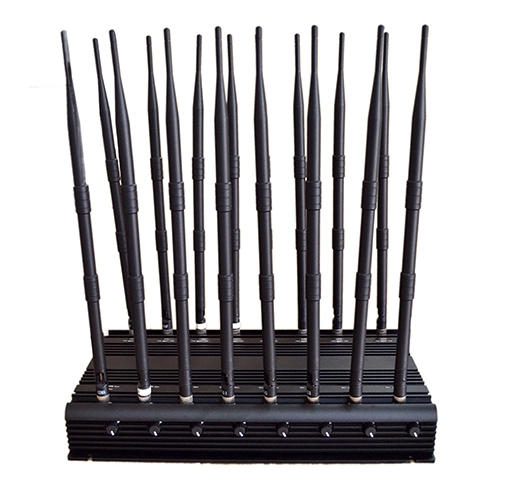

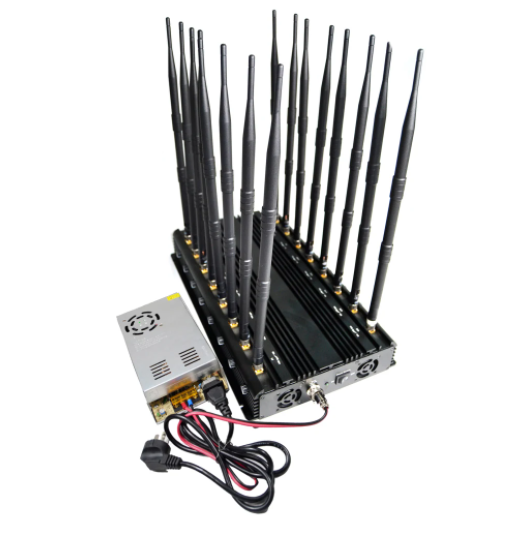

16 Band WiFi Wireless Video Jammer Cell Phone Lojack Video Audio Blocker
Product Name : 16 Band WiFi Wireless Video Jammer Cell Phone Lojack Video Audio Blocker
Product ID : HAG-WL367
Total output power : 40W
Shielding Radius : up to 40m (Still depends on the strength signal in given area)
Frequency Band : not only cut off all 3G 4G mobile phone signals, but also jam Wi-Fi GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals
Power supply : AC adapter 50 to 60Hz, (110-240V AC-12V DC)
Packing size : 49*44*15cm
Directions
Product Description
WiFi wireless cell phone lojack video audio jammer
This jammer is designed with 16 Antennas Full Bands 130Mhz-6GHz for mobile phone GSM 3G 4GLTE signal which bring us a strong jamming ability. And it can not only cut off all 3G 4G mobile phone signals, but also jam Wi-Fi GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. all-in-one jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 40meters
Features
Full bands 16 chancel design, Customized for special frequency band
High output power, Total up to: 40W , jamming up to 40m (Still depends on the strength signal in given area)
External Omni-directional antennas all the TX frequency covered down link only
With Car storage battery Charger DC12V can be used in car
Built-in good cooling system inside, Working non-stopped
Can adjust or turn off any single band without influencing the other bands operation
Two edtion for your option
This jammer is designed with 16 Antennas Full Bands 130Mhz-6GHz for mobile phone GSM 3G 4GLTE signal which bring us a strong jamming ability. And it can not only cut off all 3G 4G mobile phone signals, but also jam Wi-Fi GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. all-in-one jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 40meters
Features
Full bands 16 chancel design, Customized for special frequency band
High output power, Total up to: 40W , jamming up to 40m (Still depends on the strength signal in given area)
External Omni-directional antennas all the TX frequency covered down link only
With Car storage battery Charger DC12V can be used in car
Built-in good cooling system inside, Working non-stopped
Can adjust or turn off any single band without influencing the other bands operation
Two edtion for your option
| Key technical specifications: | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | VHF | 130-190MHz | 35dbm / 3W |
| 2 | UHF or CDMA450 | 400-470 or 450-470MHz | 35dbm / 3W |
| 3 | RC315 | 315MHz | 35dbm / 3W |
| 4 | RC433 | 433MHz | 35dbm / 3W |
| 5 | 4G1 LTE 700 | 700-803 or 790-826MHz | 35dbm / 3W |
| 6 | 4G2 LTE 1700 | 1710-1780MHz | 33dbm / 2W |
| 7 | GSM or CDMA | 925-960 or 850-894MHz | 35dbm / 3W |
| 8 | DCS or PCS | 1805-1880-1920-1990MHz | 33dbm / 2W |
| 9 | 3G | 2110-2170MHz | 33dbm / 2W |
| 10 | 4G LTE 2600 | 2500-2690 MHz | 30dbm / 1W |
| 11 | Wi-Fi 2.4G+4G2300 | 2300-2500MHz | 30dbm / 1W |
| 12 | GPSL1 | 1570-1580MHz | 33dbm / 2W |
| 13 | GPSL2+L5 or Wireless Camera 1 | 1170-1280MHz | 33dbm / 2W |
| 14 | GPSL3+L4 or Wireless Camera 2 | 1280-1390MHz | 33dbm / 2W |
| 15 | Wireless Camera 3 | 1000-1170MHz | 33dbm / 2W |
| 16 | LOJACK& XM radio | 167-175MHz | 35dbm / 3W |
| The below frequencies you can instead of above one to combined 16 bands | |||
| Option | WIFI5.2G | 5100-5500MHz | 30dbm / 1W |
| WIFI5.8G | 5500-5900MHz | 30dbm / 1W | |
| WiFi3.6G | 3500-3600MHz | 30dbm / 1W | |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 410x 238x 60mm(not Include Antenna) | |||
| Packing size: 49*44*15cm Net weight: 6kg Gross weight: 7.0kg | |||
| Total power:40W Shielding radius: (2-40) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
